LEVEL WOUND COIL
Introduction

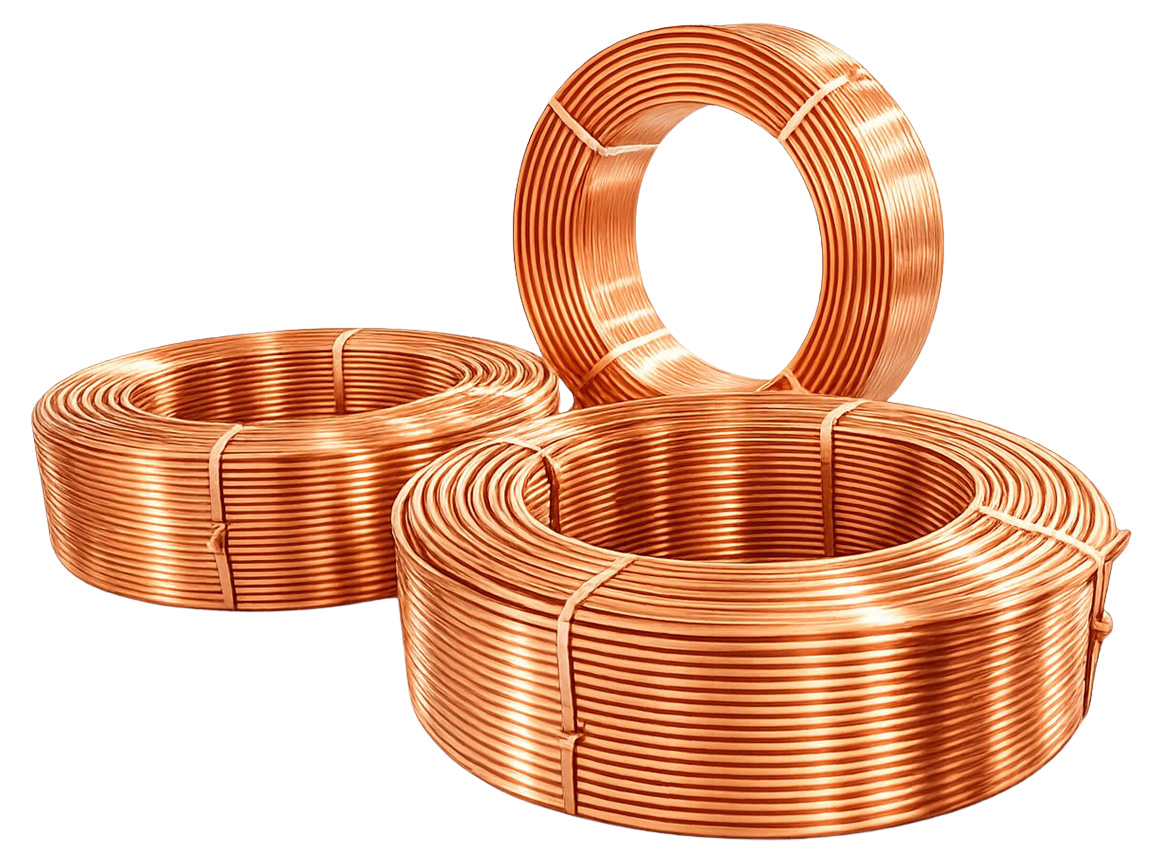

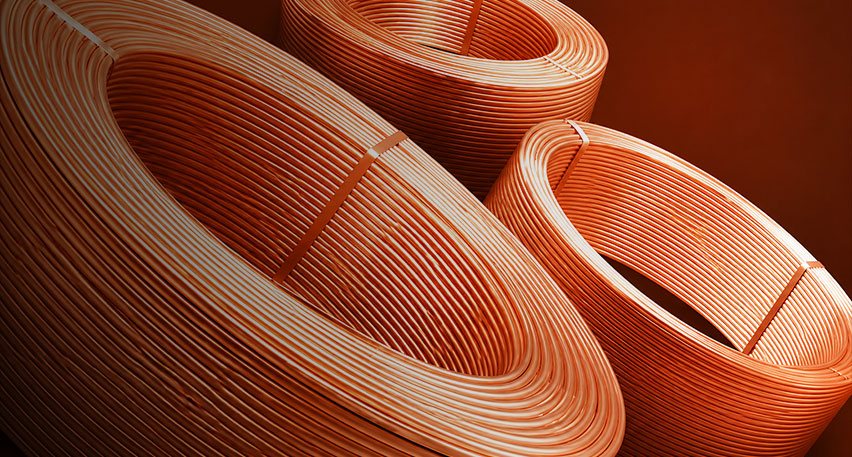

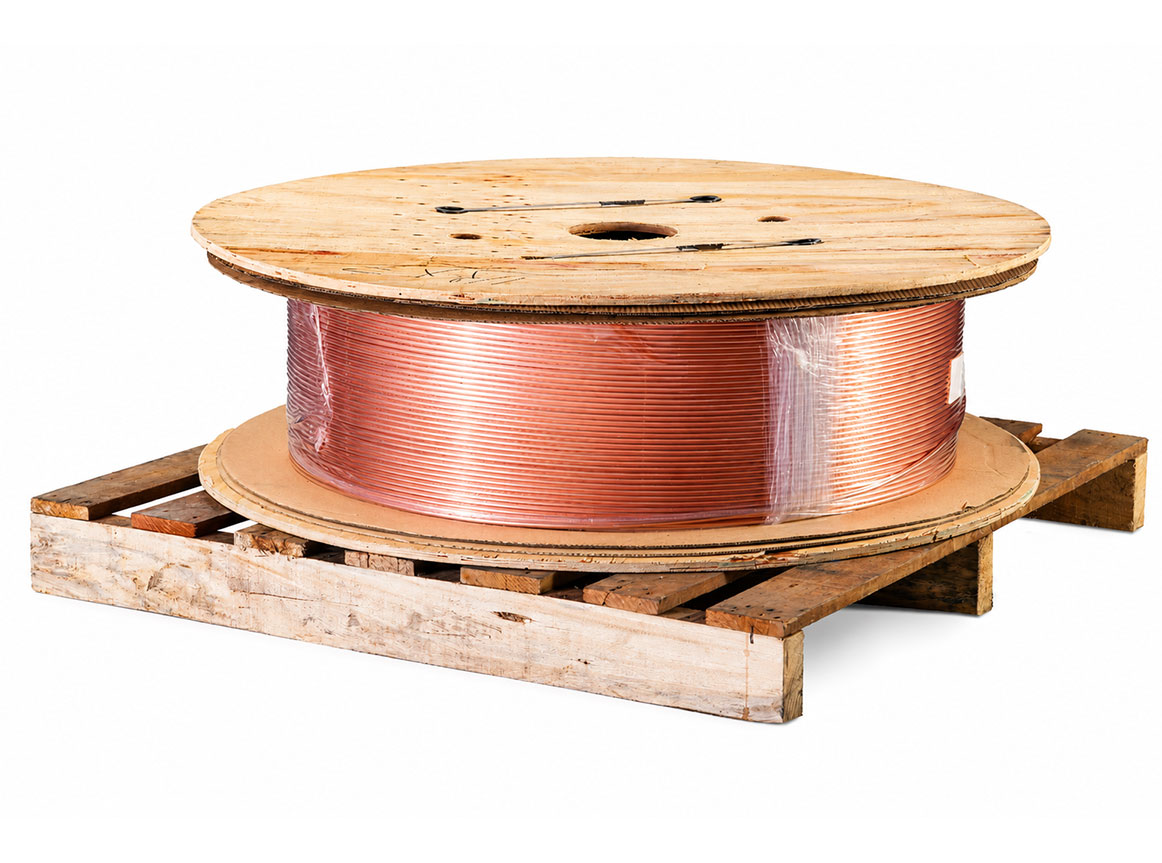

Level Wound Coil is a coil of copper tubes in which turns are positioned into layers on a spool parallel to the axis of spool such that successive turns in a given layer are next to one another.
TEMPER
SOFT ANNEALED-O60
LIGHT ANNEALED-O50
SIZES AVAILABLE
Range: OD : 4.76 mm to 15.88 mm
Thickness: 0.31 mm to 1.5 mm
REFERENCE STANDARD
ASTM B68
ASTM B75, ASTM B837, JIS H3300
BS EN 12735-1, BS EN 12735-2, EN 1057
IS 10773 copper tubes for AC & RF
SPECIFICATION CHART
| OUTER DIAMETER | INCH | LWC WALL THICKNESS (MM) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.25 | 0.28 | 0.31 | 0.35 | 0.41 | 0.51 | 0.56 | 0.61 | 0.71 | 0.81 | 0.91 | 1.00 | 1.20 | 1.50 | ||
| 4.76 | 3/16″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| 6.35 | 1/4″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 7.94 | 5/16″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 9.52 | 3/8″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 12.70 | 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 15.88 | 5/8″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| 19.05 | 3/4″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||
| SIZES AS PER CUSTOMERS REQUIREMENT CAN ALSO BE PROVIDED | |||||||||||||||
APPLICATION
- VRV & VRF – Air Conditioning And Refrigration Systems
- AHU’s
- HVAC Industry
- Heat Exchangers
- Evaporator Coils
- Capillary Tube Drawing
